- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.

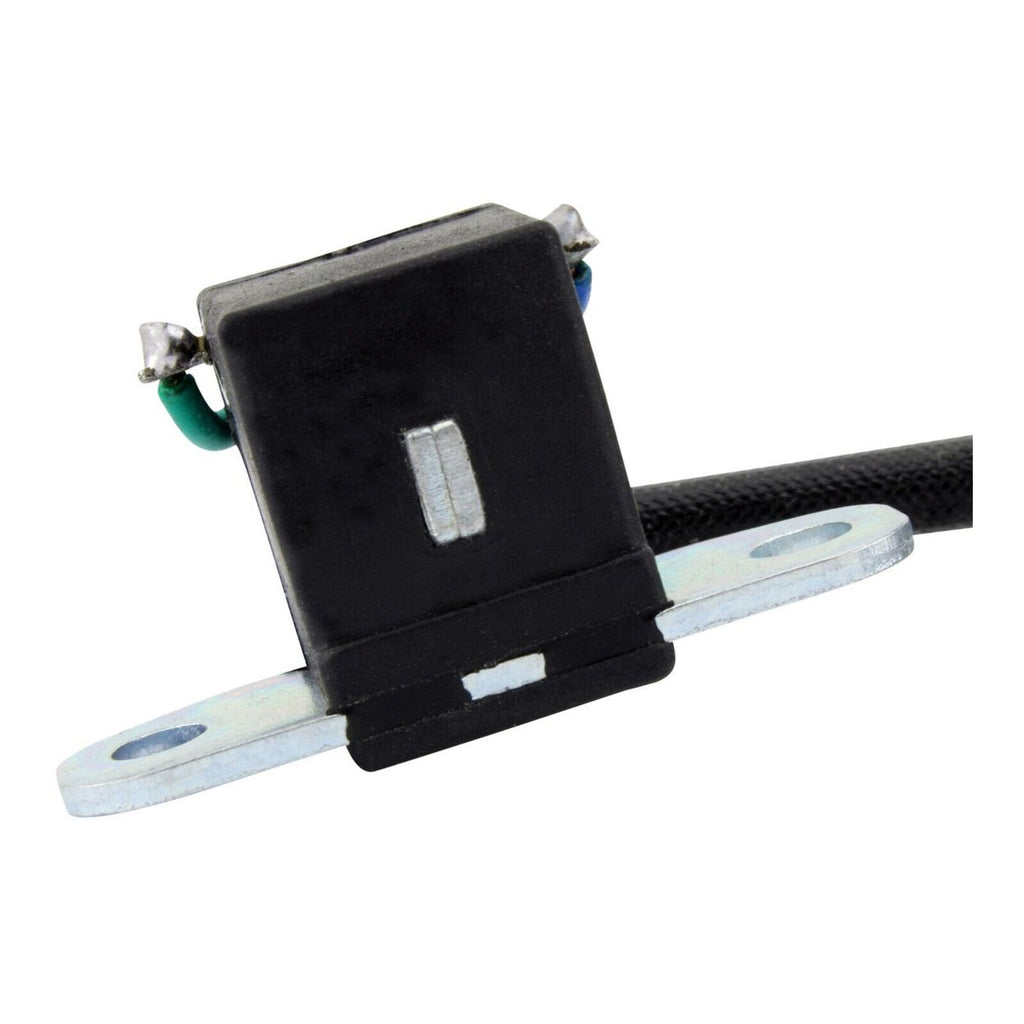

- Pick up pulsar coil included.

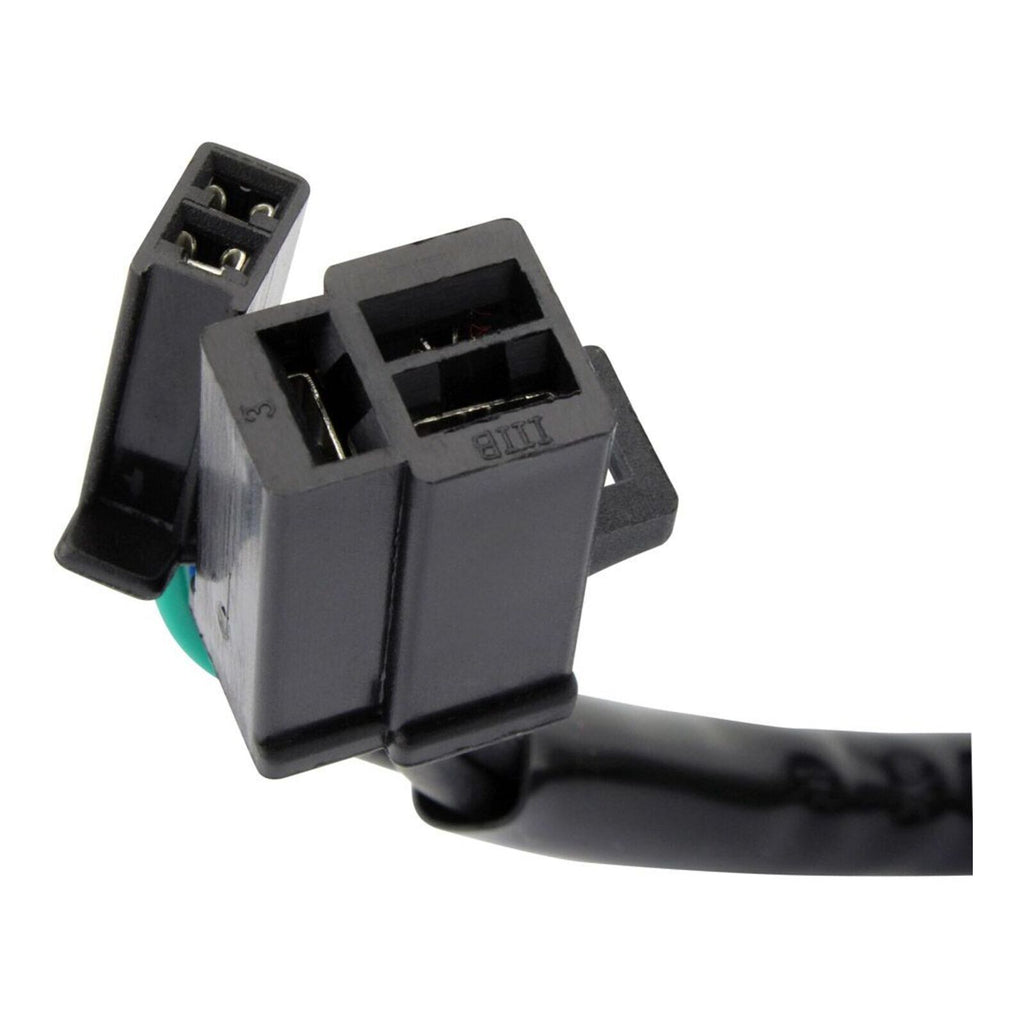

- Connector included.

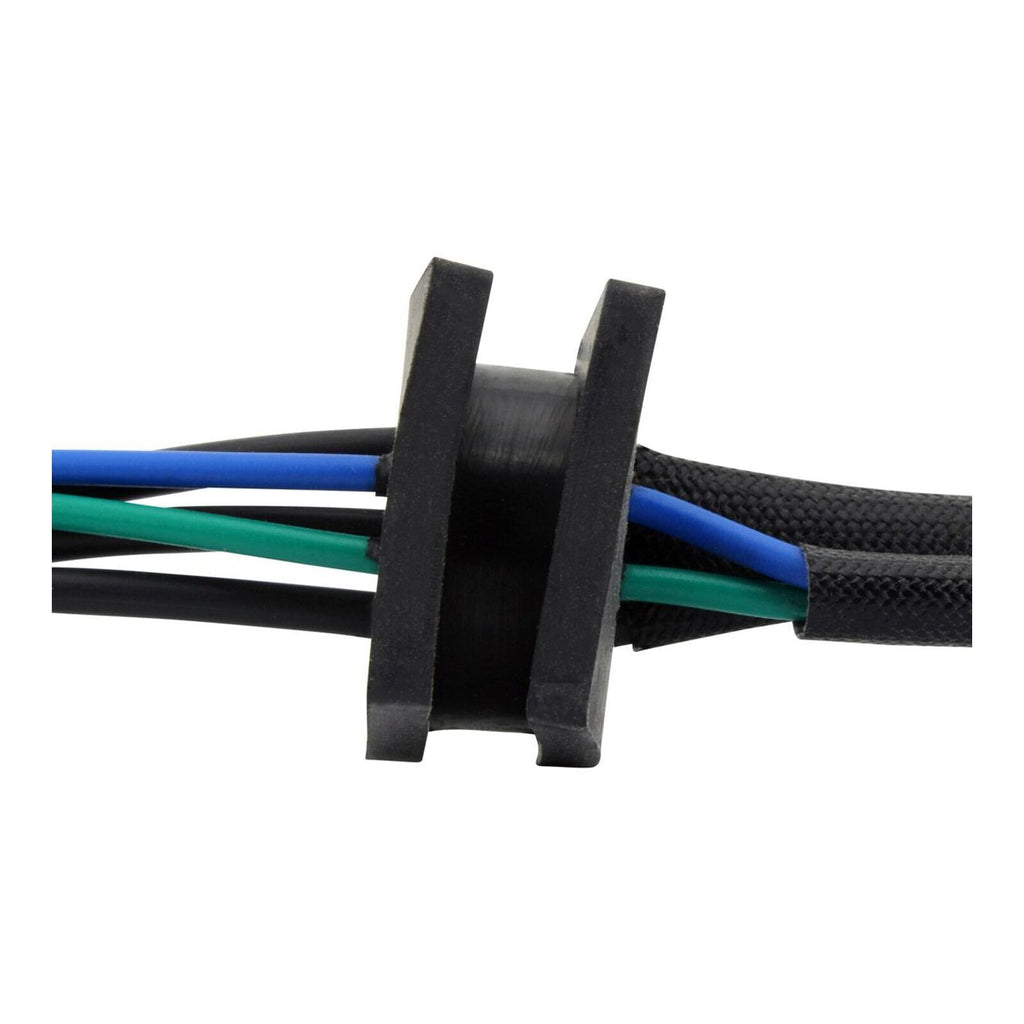

- Rubber grommet included.
- All products shipped are tested.

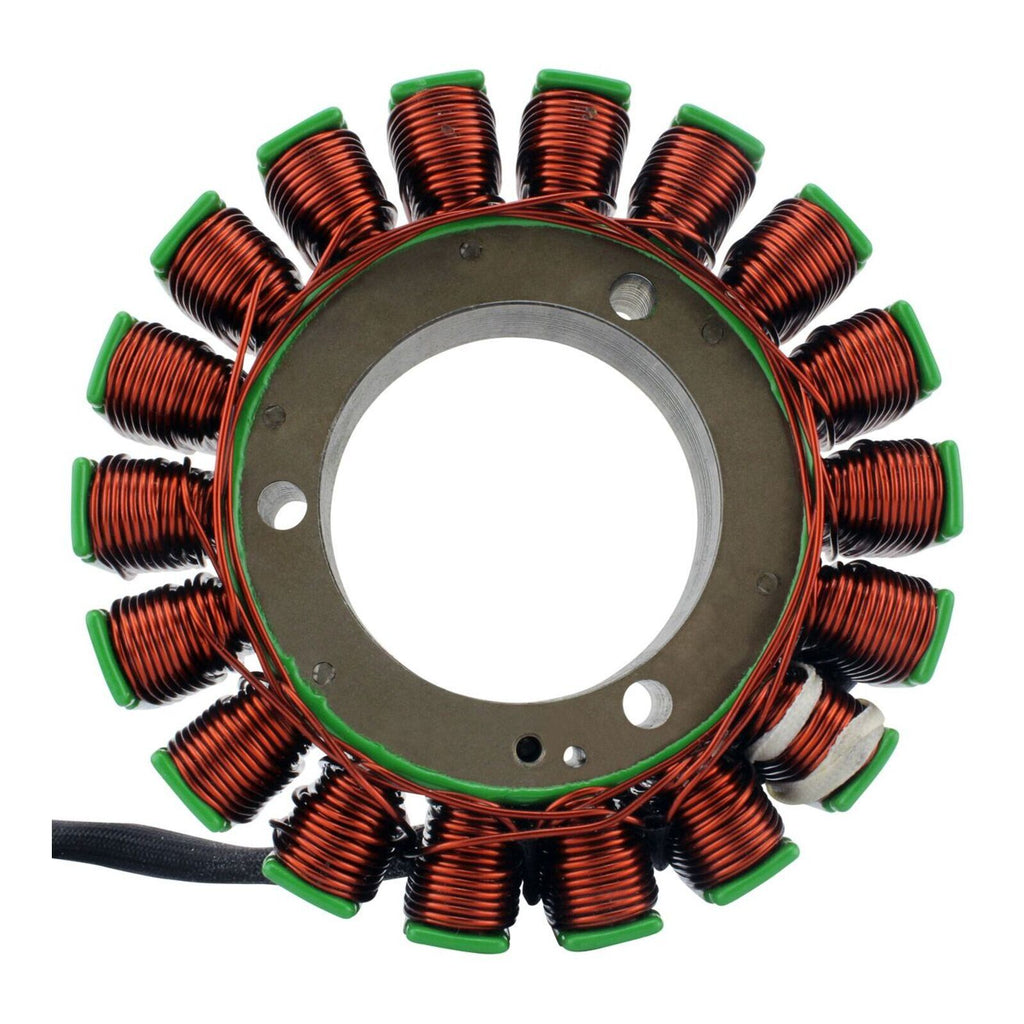

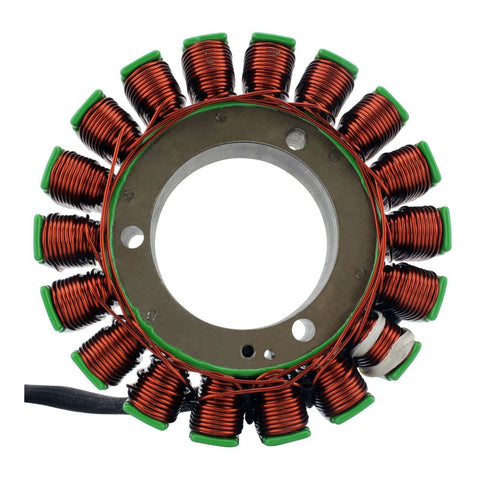

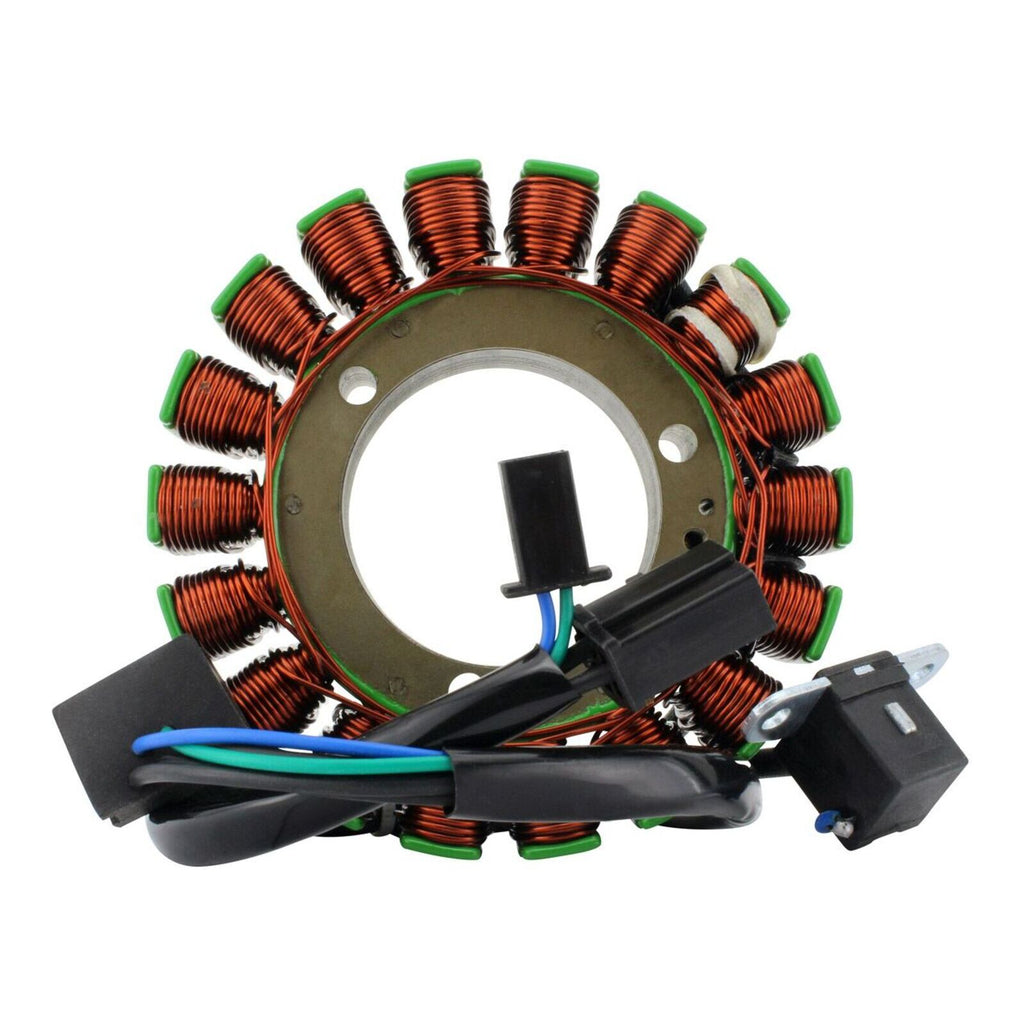

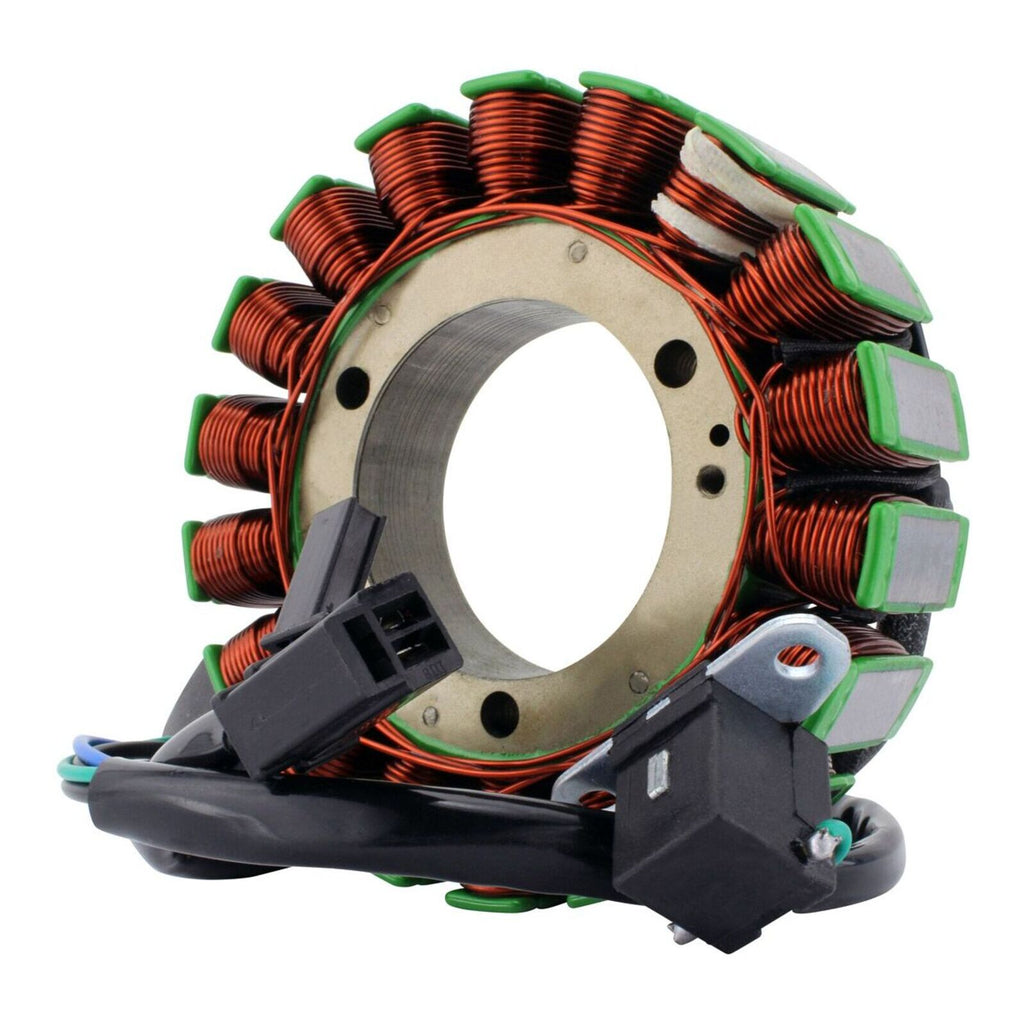

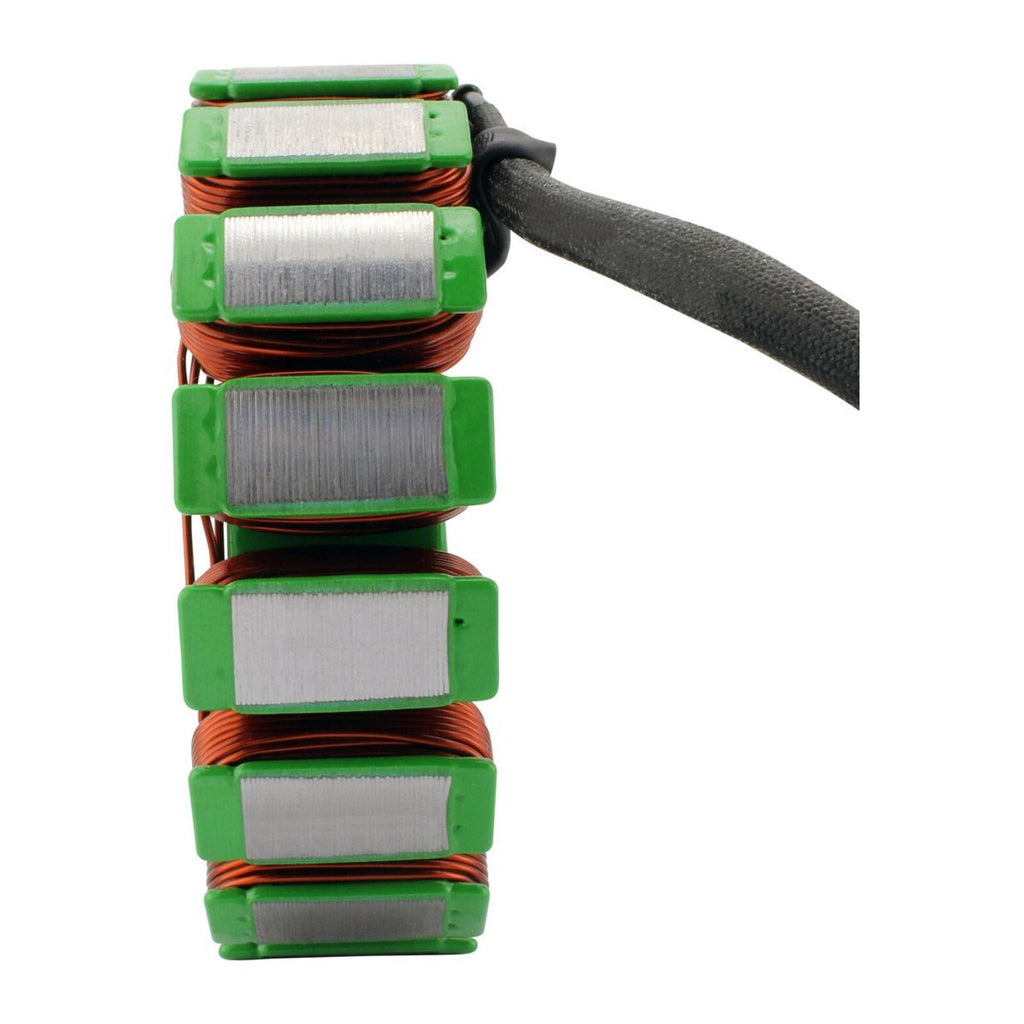

Stator:
-
Dim ensions:
- Interior diameter: 54 mm
- Exterior diameter: 119 mm
- Thickness: 25 mm
- Length of wires stator to grommet: 160 mm
- Length of wires grommet to plug: 430 mm
- Length of pickup coil's wire to grommet: 150 mm
-
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Black to Black = 0.6 ohms +-20%
- Pickup: Blue to Green = 193 ohms +-20%

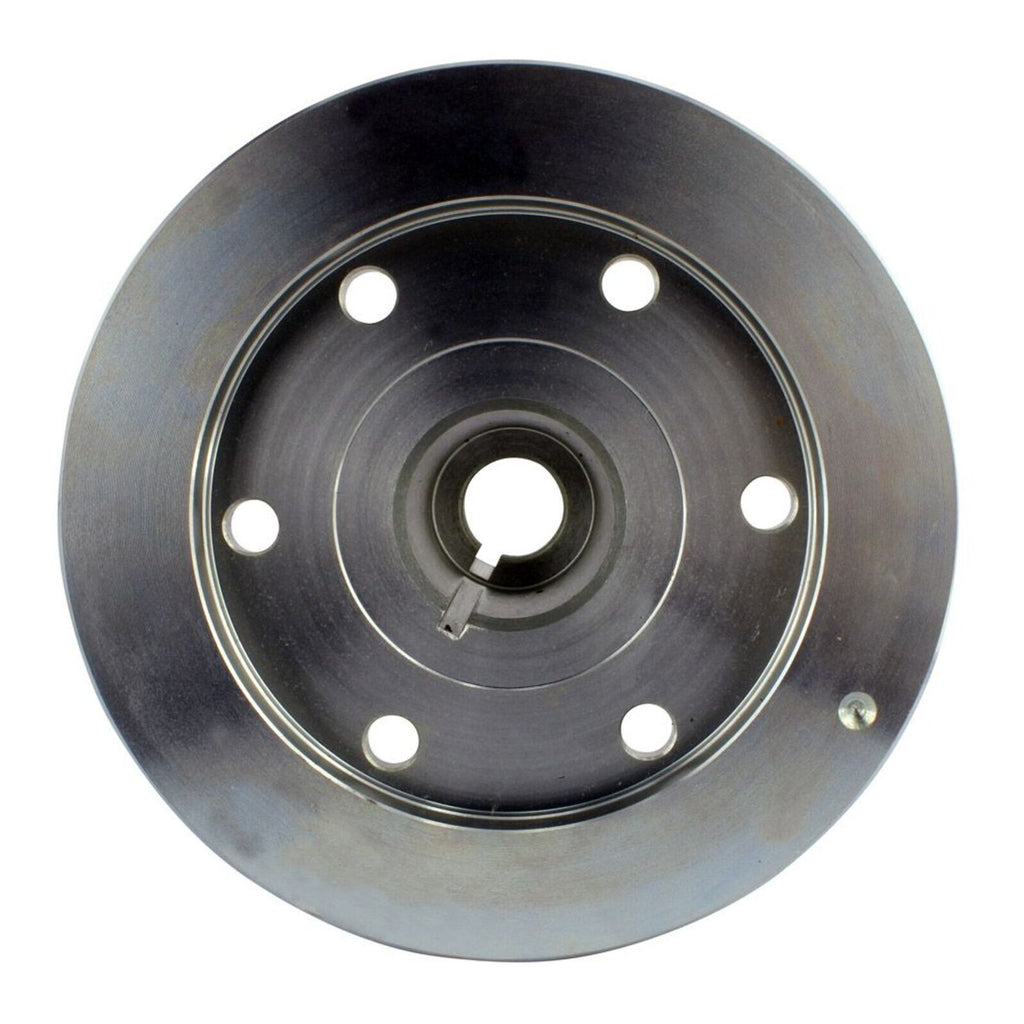

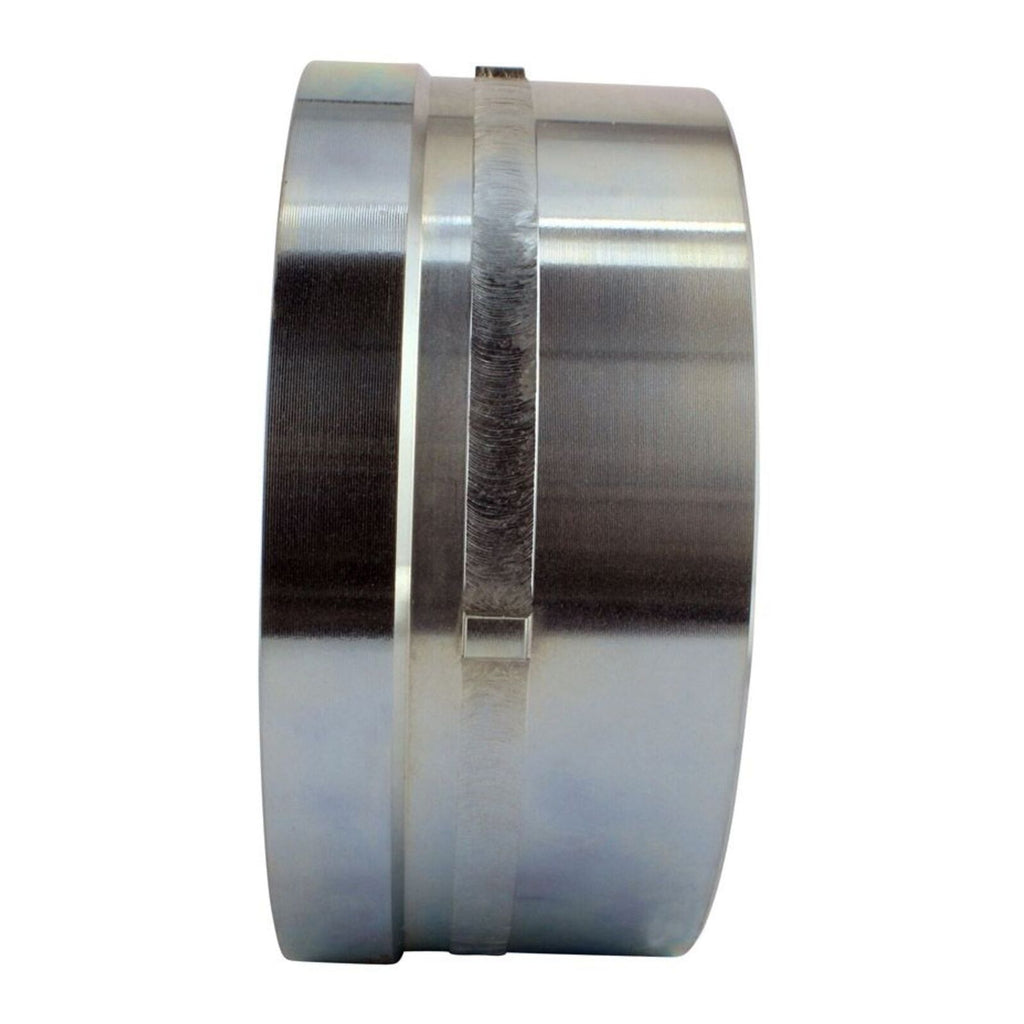

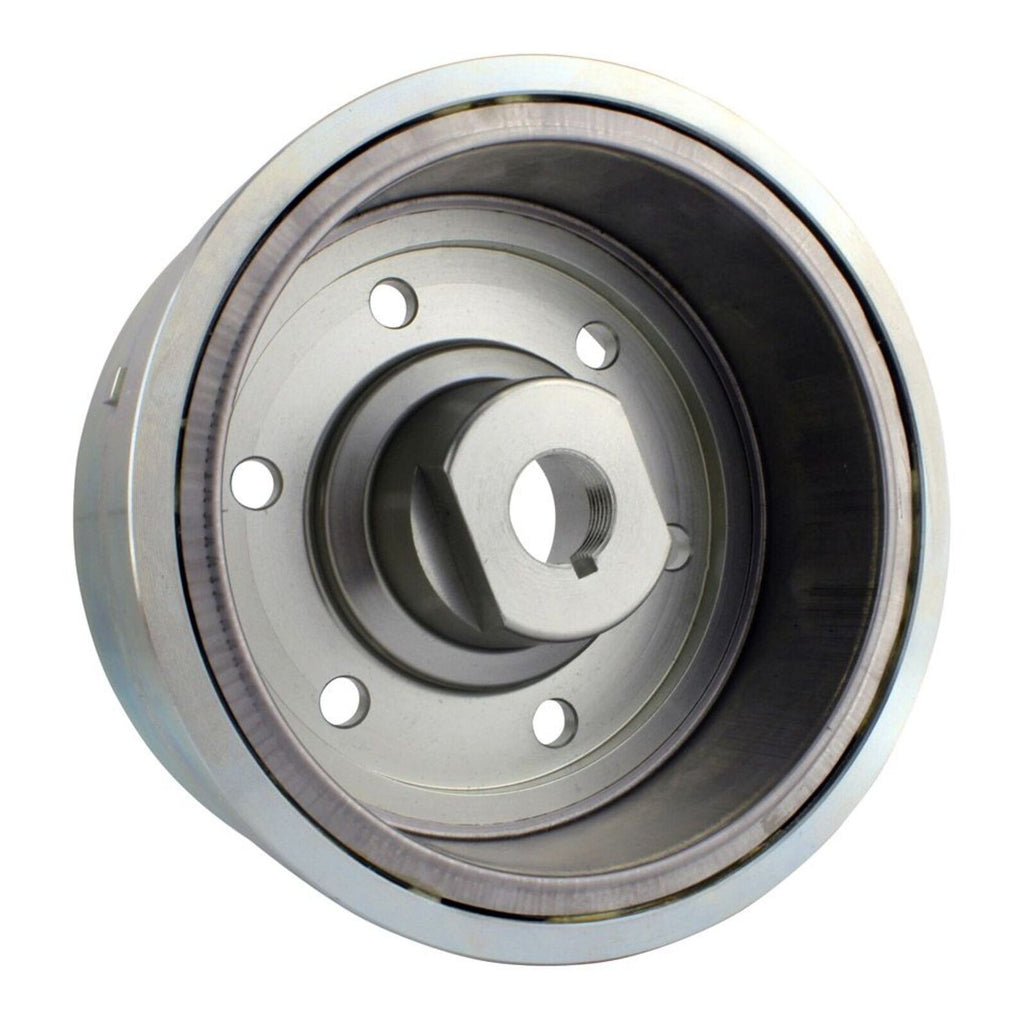

Flywheel:
-
Dimensions:
- Inner Diameter: 120 mm
- Outer Diameter: 149 mm
- Total Height: 65 mm
- Inside Height: 46 mm

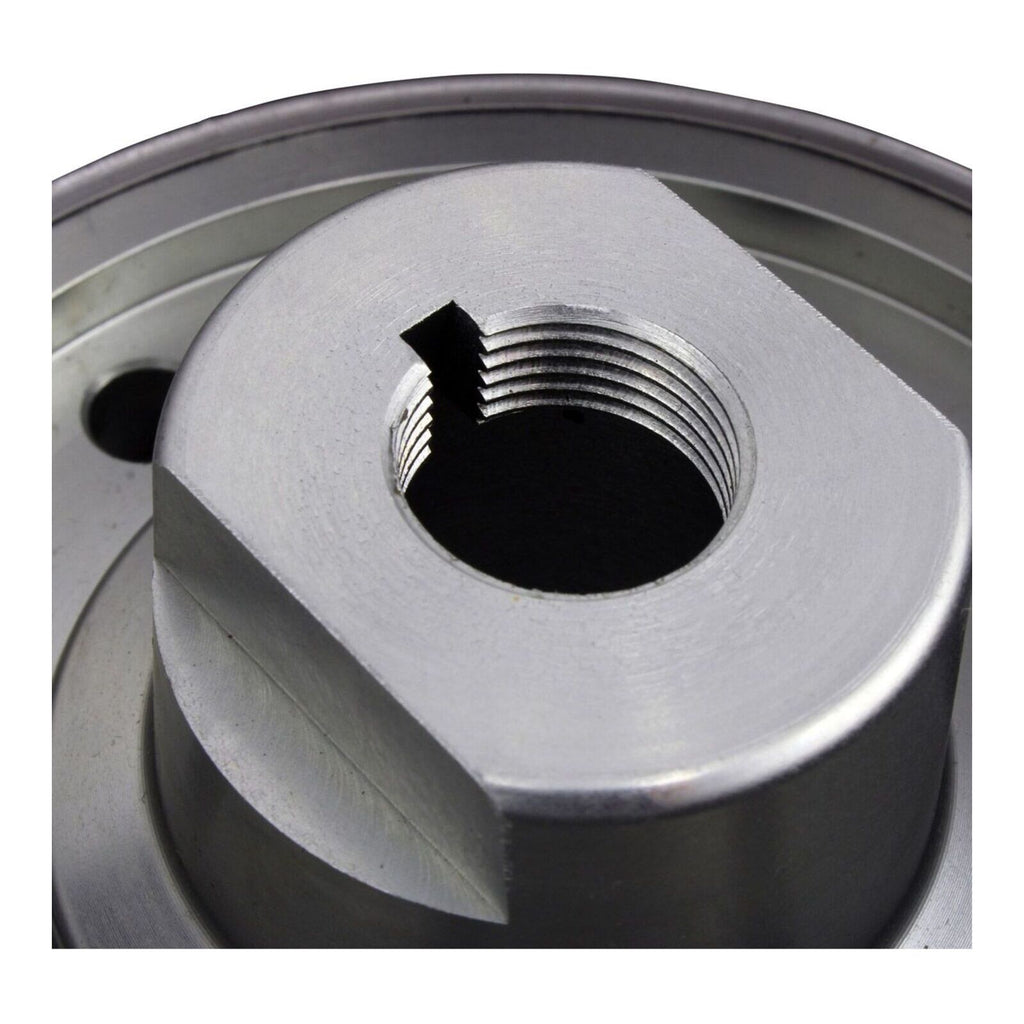

- Center Housing Depth: 35 mm
- Center Housing Widest: 35 mm
- Center Housing Thickness: 26 mm
