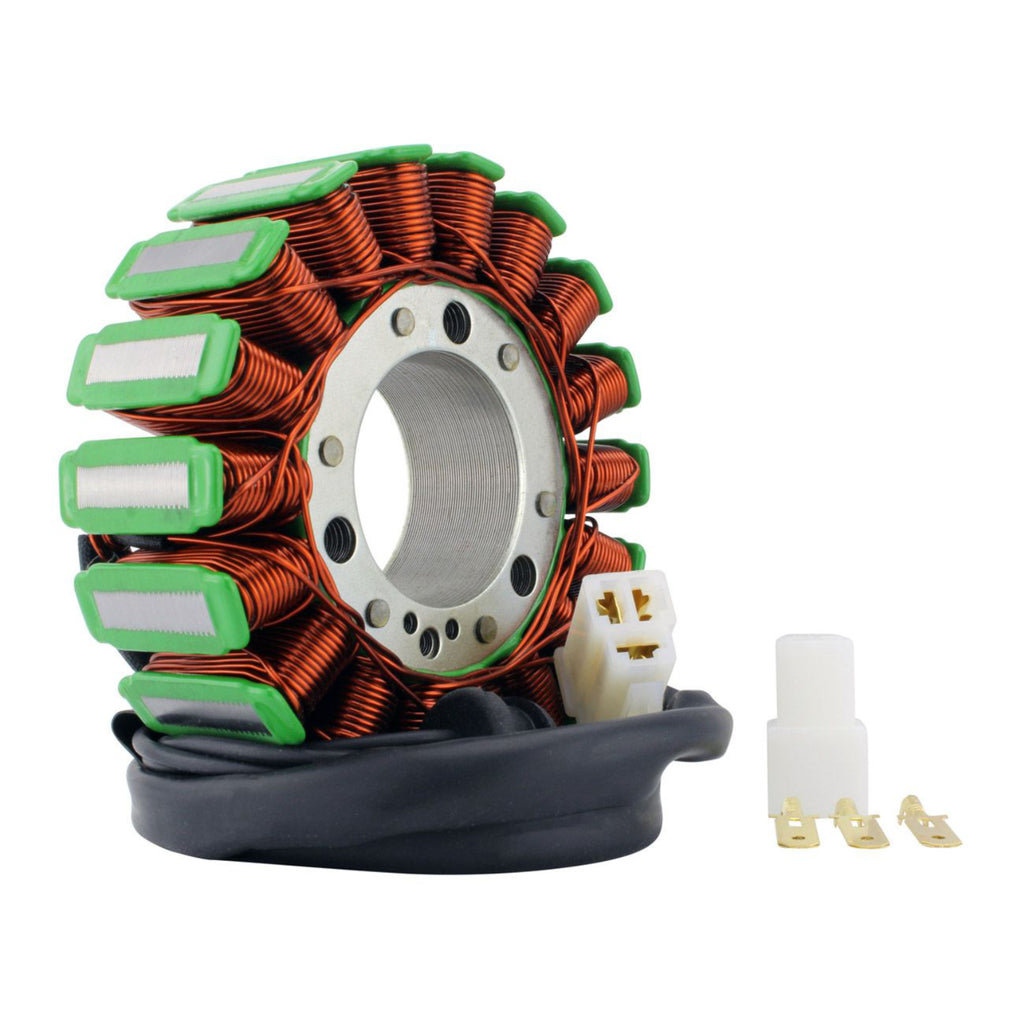

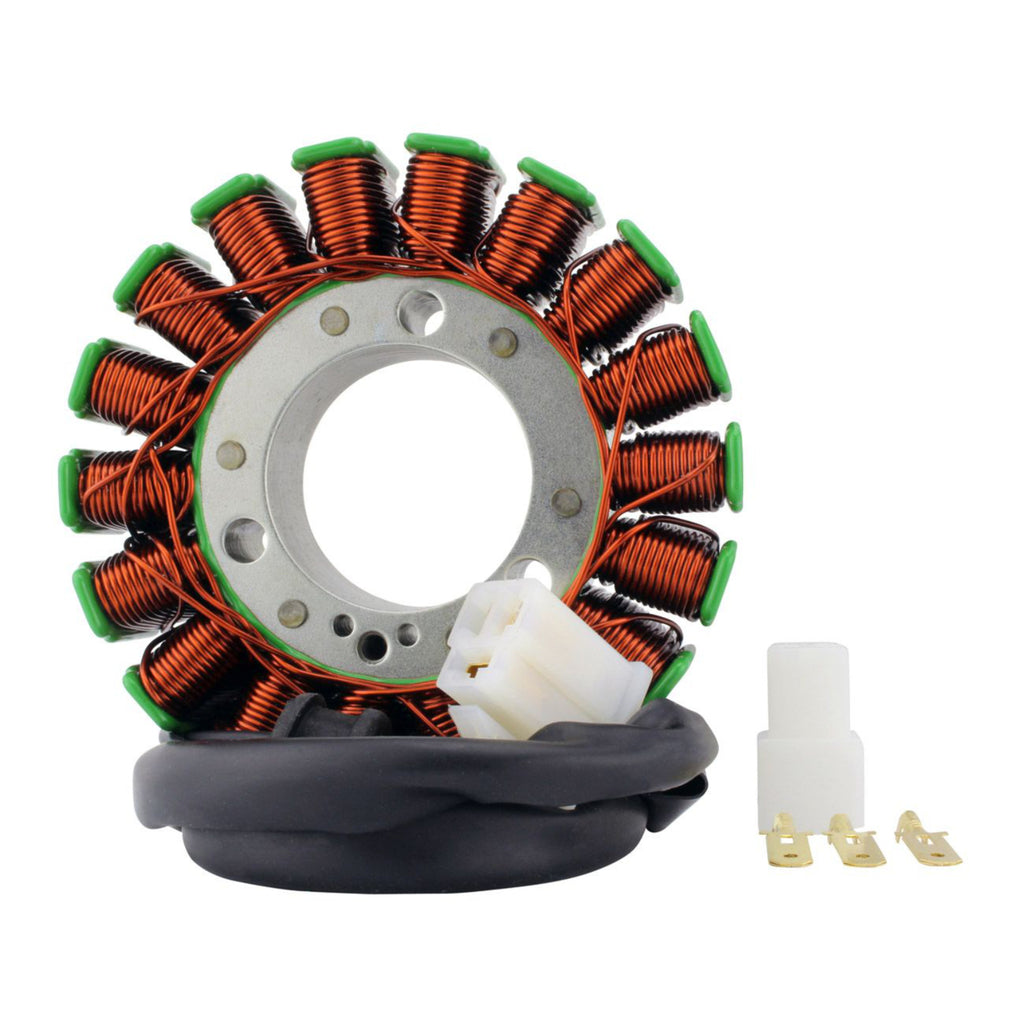

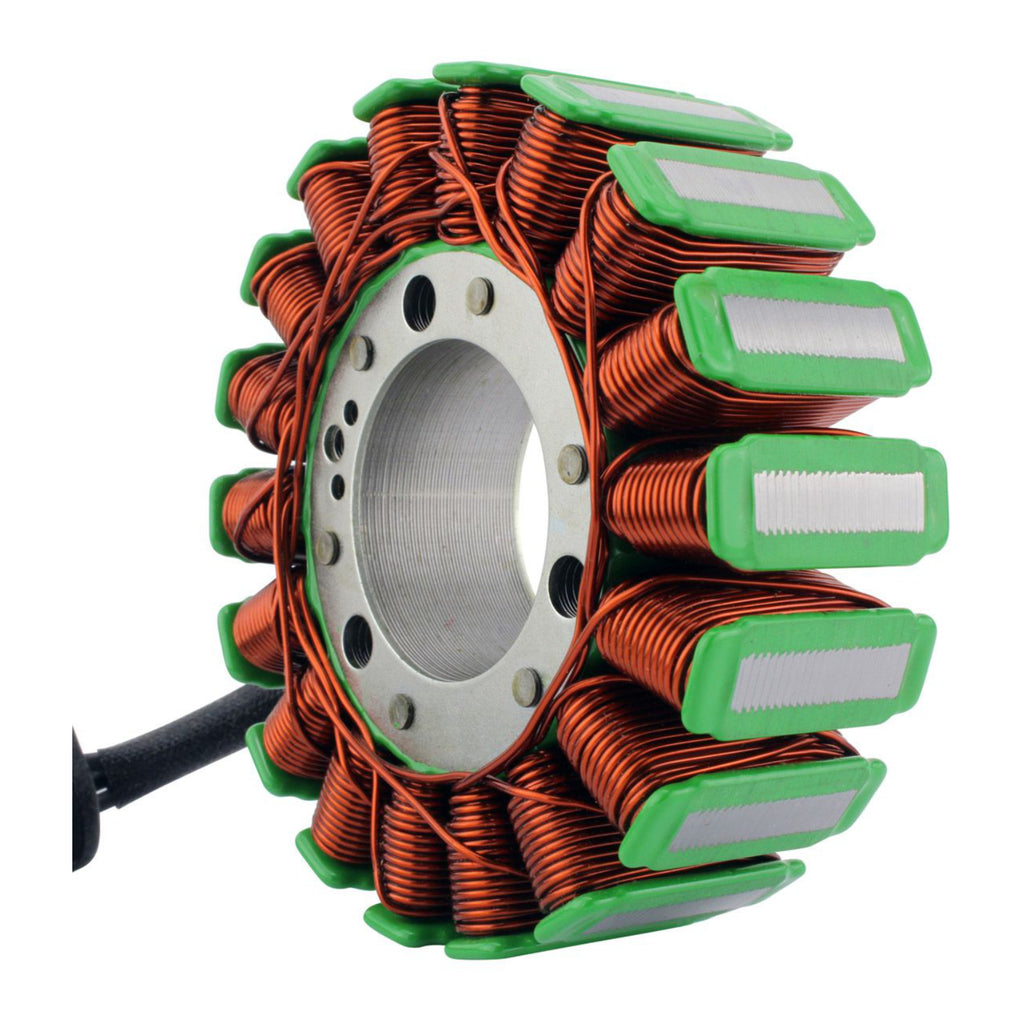

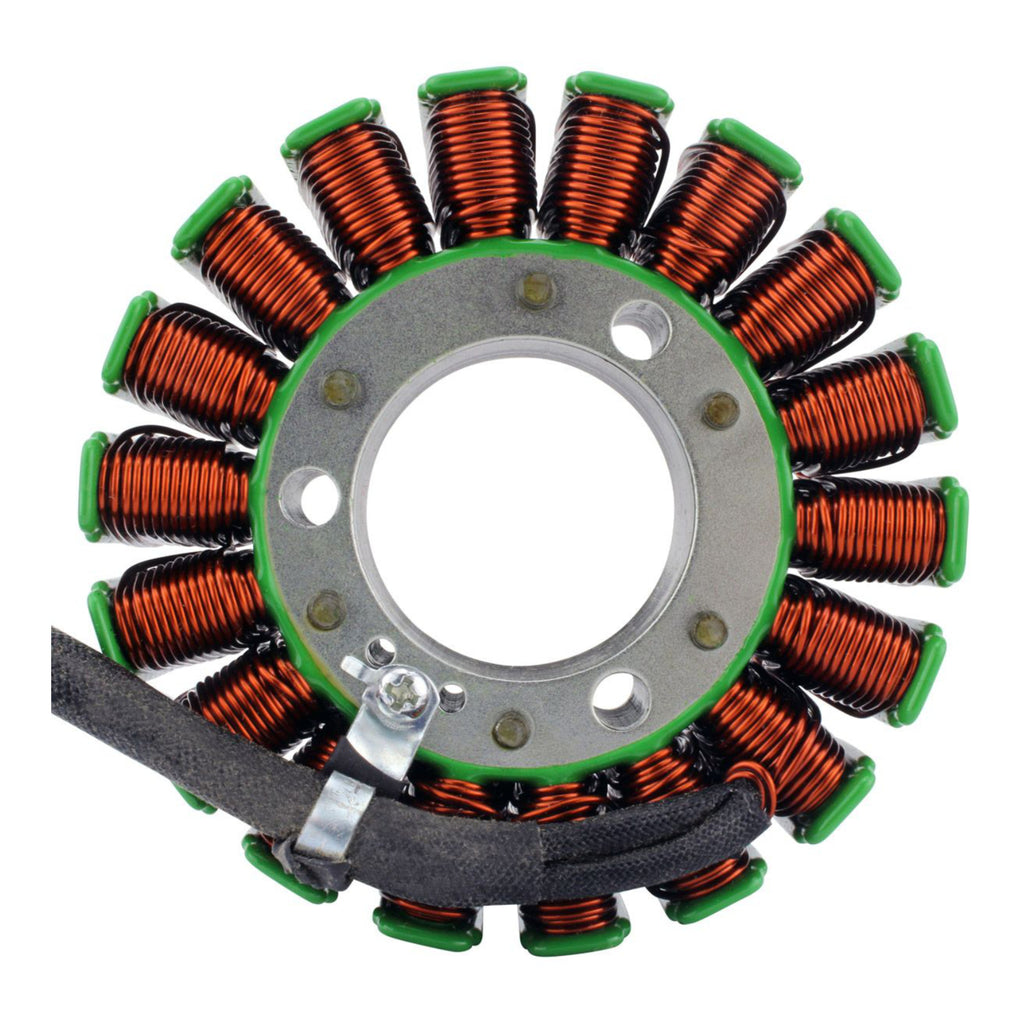

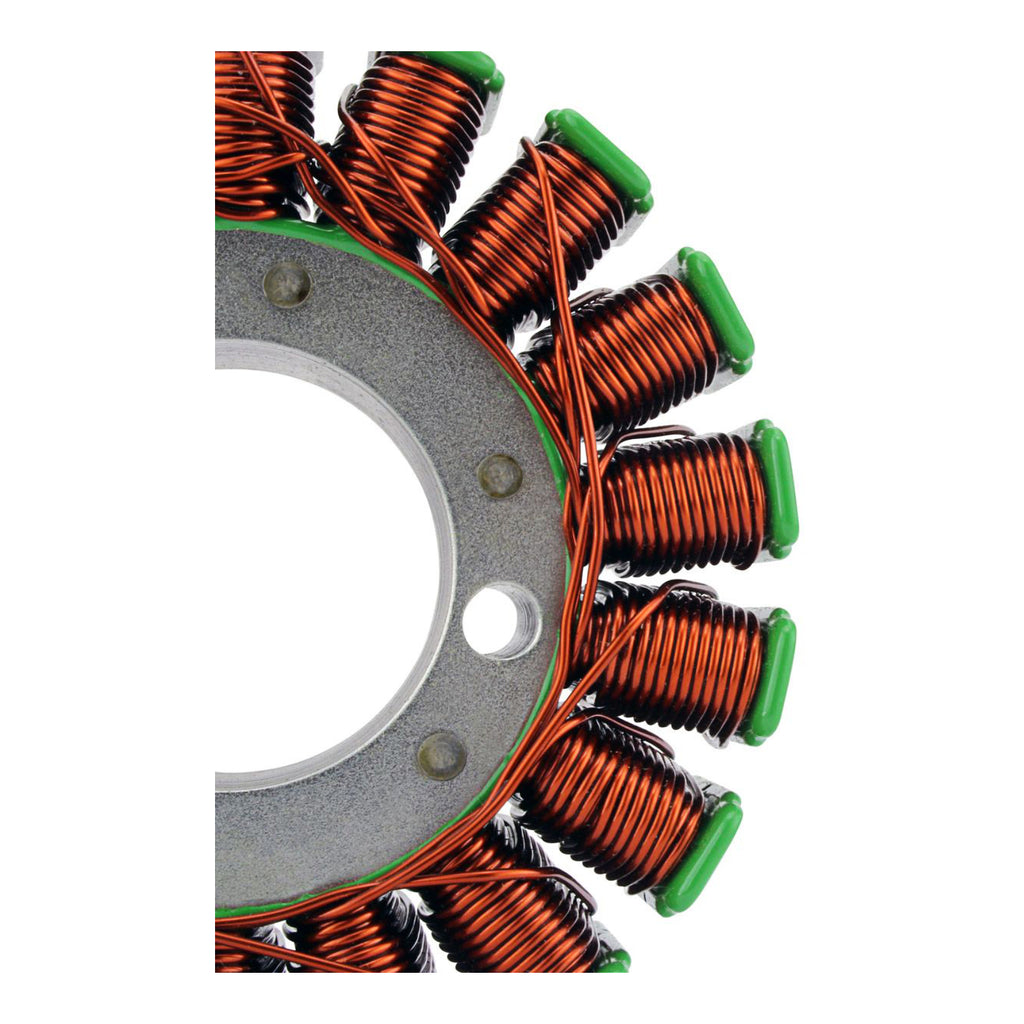

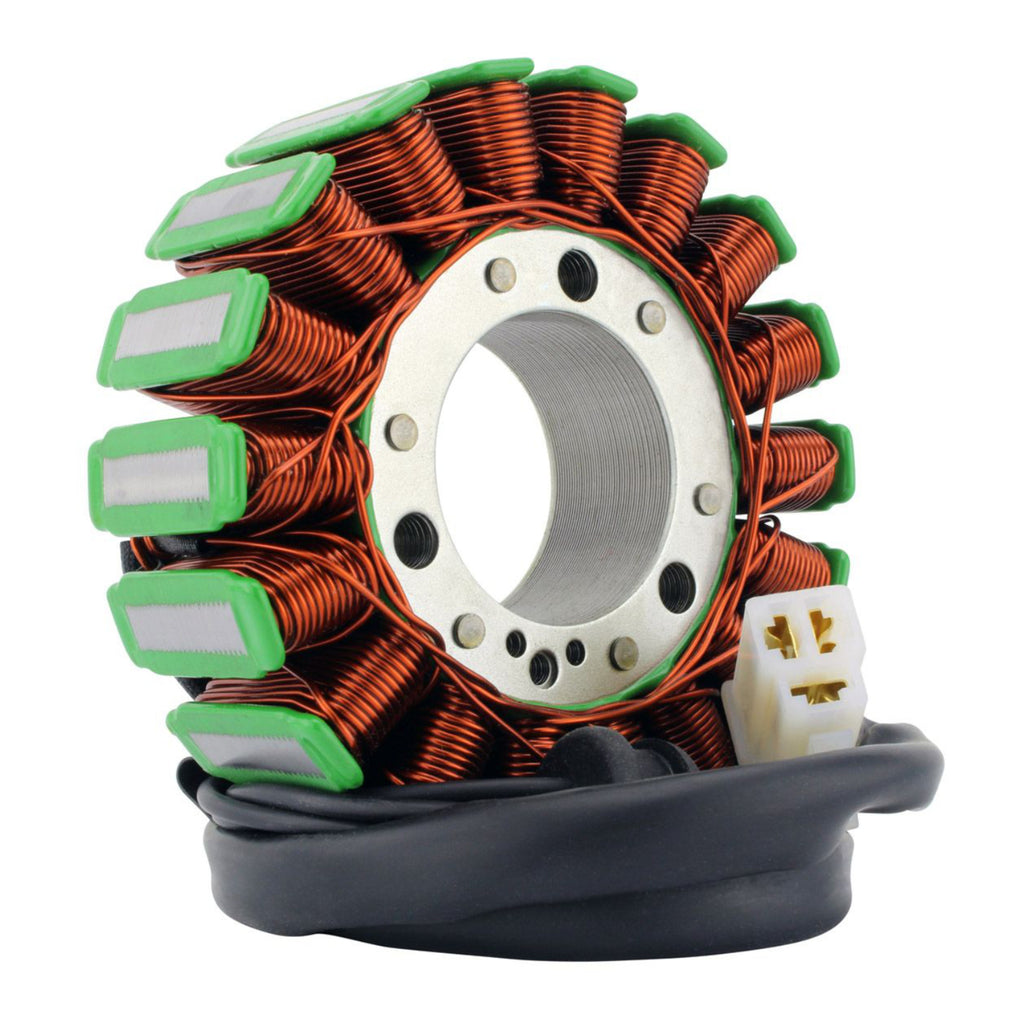

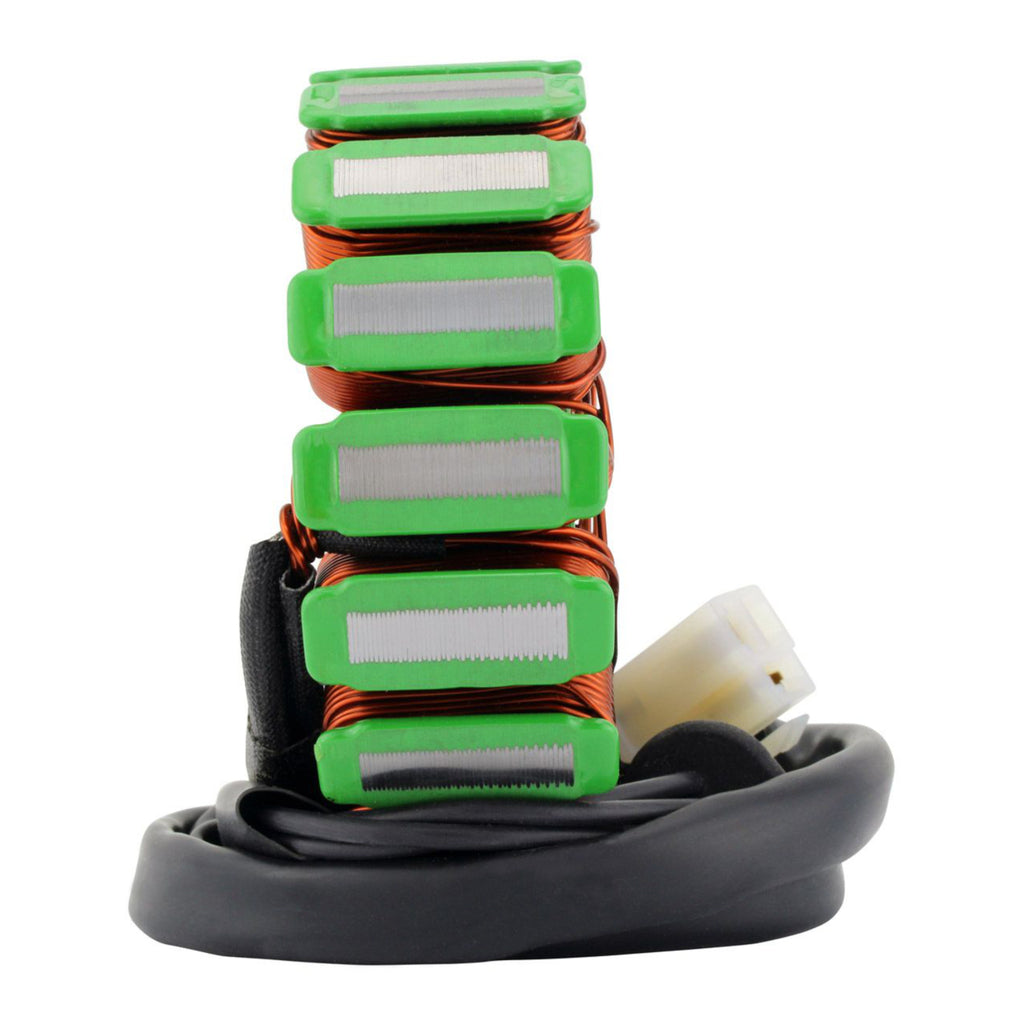

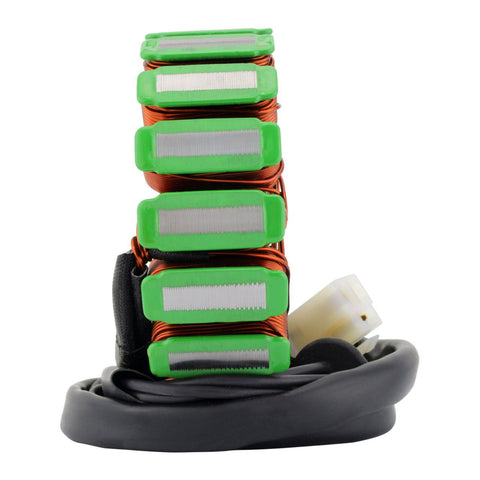

Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 99 mm
- Thickness: 27 mm
- Length of wires stator to grommet: 100 mm
- Length of wires grommet to plug: 650 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
Wire to wire resistance:
- Alternator: Black to Black = 0.6 ohms +-20%
- Alternator to ground = O.L (Open Loop)
